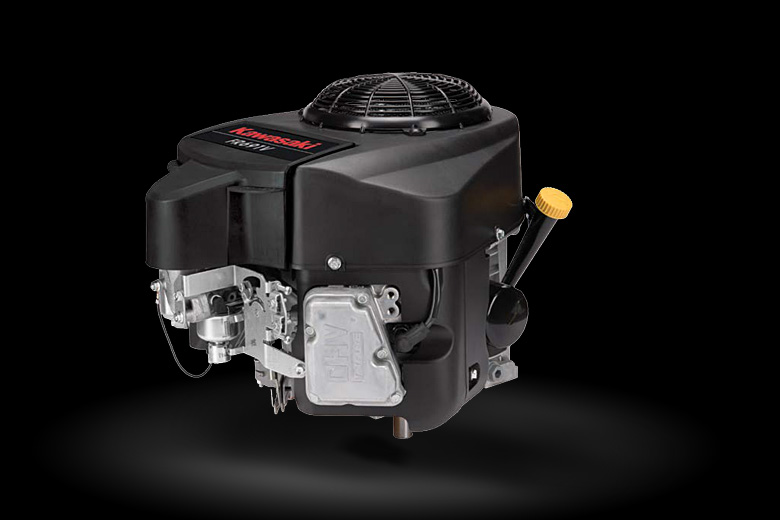

FR691V

      Model FR691V
      Engine type Air-cooled, 4-stroke, Vertical shaft, OHV
      Valve's form OHV
      Displacement 726 cm3
      Bore x stroke 78 x 76 mm
      Max. power 15.4kW (20.6hp) / 3600 rpm
      Max. torque 53.7 Nm (39.6ft.lbs) / 2000 rpm
      Fuel tank capacity - L
      Oil capacity 2.0 L
      Dimensions 501 x 466 x 392 (L*W*H mm)
      Dry Weight 40.0 kg
    Features
    Overhead V-valve
    90 degree V-twin
    High performance lubrication system
    Electronic spark ignition
    Automatic compression release
    Internally vented carburetor with fuel shut-off solenoid
    Rotating grass screen
    Dual element air filter
    Bendix type starter
    Options
    Shaft variations
    Flywheel PTO
    Various speed control system
    13 or 20 Amp charge coil
    Various oil drains
    Oil pressure switches
